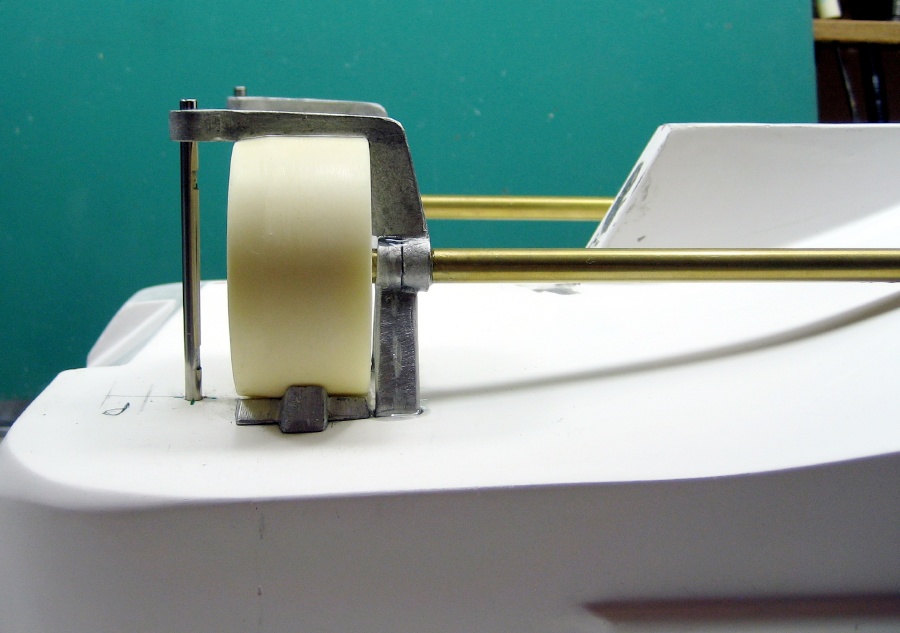

One effect of not using the molded marks for the shafts or the full thickness of nozzle supports is that my shafts are a little shallower than they perhaps should be. The drawings show them with a down angle of about 2 degrees, mine are about 1/2 to 1 degree down. Absent any prototype data I'm not bothered and they do seem to line up better with the nozzles like this. |
