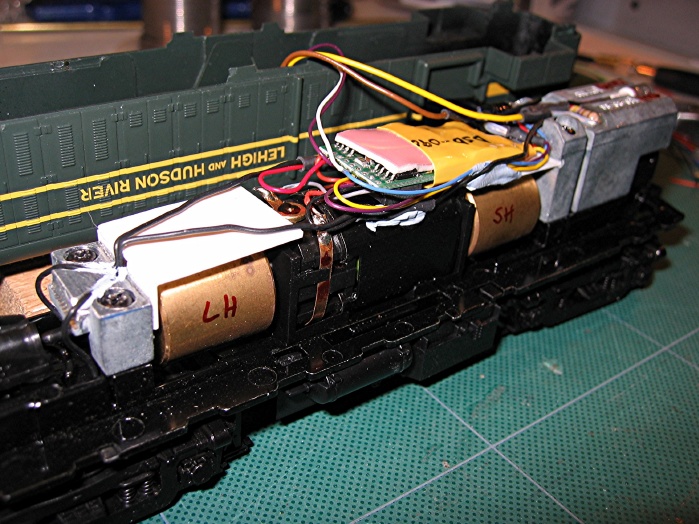

HO Locomotives <<-- Previous   index   Next -->> Atlas RS3 sound 5 The standard circuit board was removed and the mounting tabs cut down to just above the flywheels. The front weight was mostly removed to make space for the speaker and air space below it (it looked the same as the rear weight on the right of the picture). A small bit was retained, but cut down and slotted to guide the pickup wires from the front truck. Plastic platforms were built over the flywheels to protect the wires, etc. These are attached to the weights only and just rest on the motor ends so that disassembly is possible. 21(23) Copyright Mike Sheridan, 2003-2006 Created with Web Picture Creator 1.50
