New control panels 4

New control panels 4

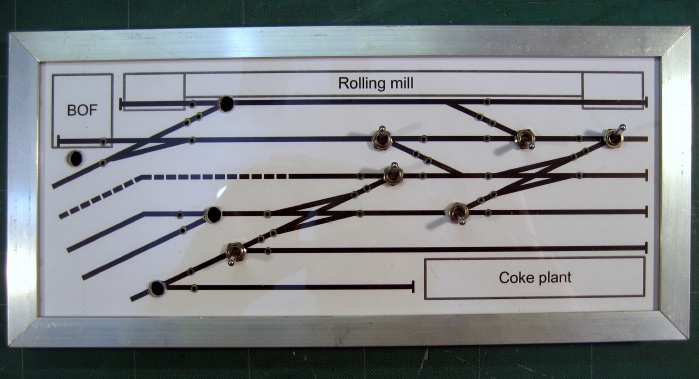

The front with the second set of switches still to be fitted.
It isn't very obvious here because of shadows, but there is some staining of the paper diagram around some LEDs. I thought a bit of superglue at the back would be a good idea to keep these in place, but it capillaried its way between the sheets. Subsequently I have relied on the legs of the LEDs being soldered together and to the switch being sufficient to hold them in place - if it is not then a different gluing process will be needed.
