While waiting on the correct decals I finished off the wiring for power, etc. As I am now putting a cover over the waterfall winch (see later) the area around it will be concealed, so I have installed much of the wiring here making life simpler.

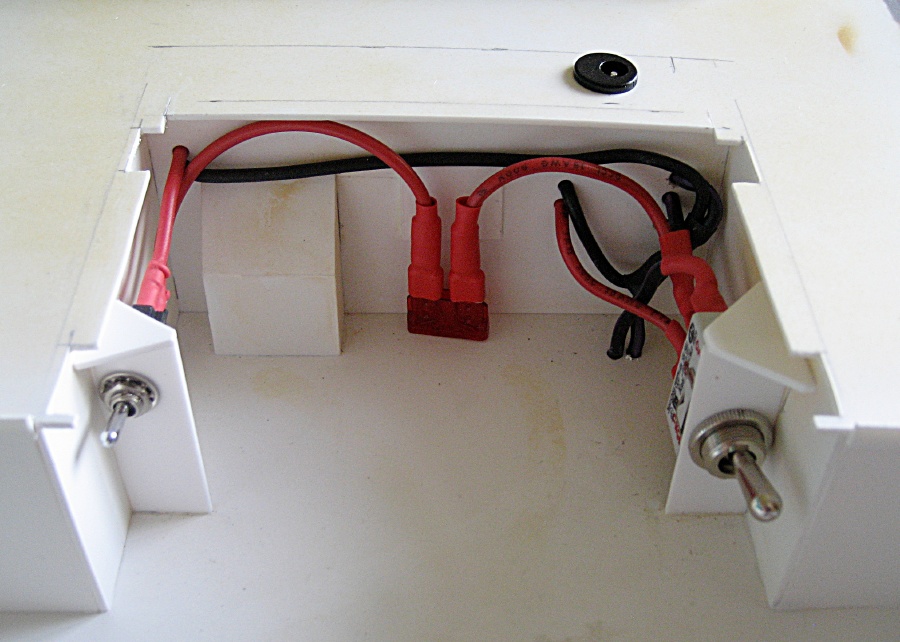

The starboard switch is for the main power from the battery to the motor controls, the smaller port one is the feed to the auxiliary distribution - mainly the two bilge pumps. The thing in the middle against the bulkead is the main fuse for the auxiliaries. The waterfall winch will fit down the middle - more on that later. The black socket upper right is for charging. |
