HO 'Steelworks' baseboards



Turnout control 2

Turnout control 2

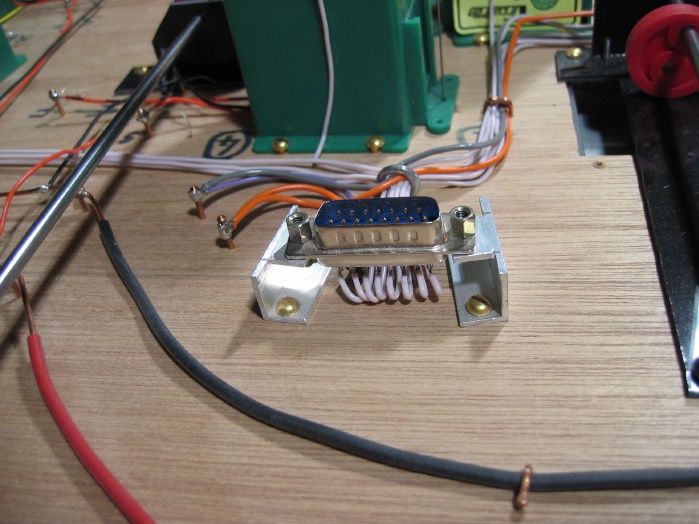

This is the 15 pin 'D' connector that the turnout machine controls are plugged into. The two pins to the left are the connections for the +/-7.5V supply. The common wire is not needed here, only on the motors.
